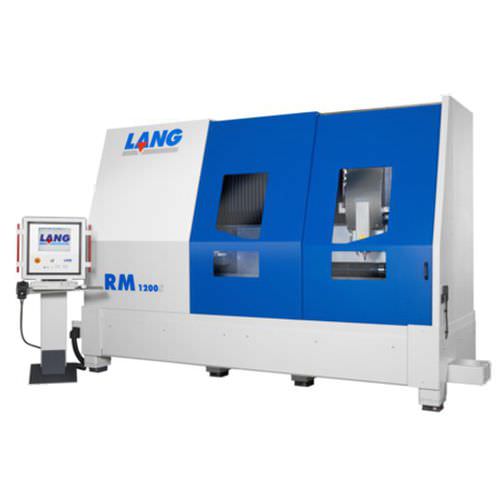

3-axis CNC milling center RM 1200Sverticalengravingcutting
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Associated functions
- engraving, cutting
- X travel
1,200 mm
(47.24 in)- Y travel
Max.: 30 mm
(1.18 in)Min.: 0 mm
(0 in)- Z travel
250 mm
(9.84 in)- Rotational speed
Max.: 60,000 rpm
(376,991 rad.min-1)Min.: 5,000 rpm
(31,416 rad.min-1)- Power
Max.: 10 kW
(13.6 hp)Min.: 1.2 kW
(1.63 hp)
Description
A special engraving machine for the manufacture of cutting and embossing cylinders. The circular engraving device and the counter support are steplessley adjustable in X-direction for the most different cylinder lengths. This result is a high flexibility when choosing the workpieces. A crane loading of the machine with cylinders is possible.
Options
Camera system
Oil mist aspiration
Coolant supply with oil rotating and filter system
Oil bin for wet processing
