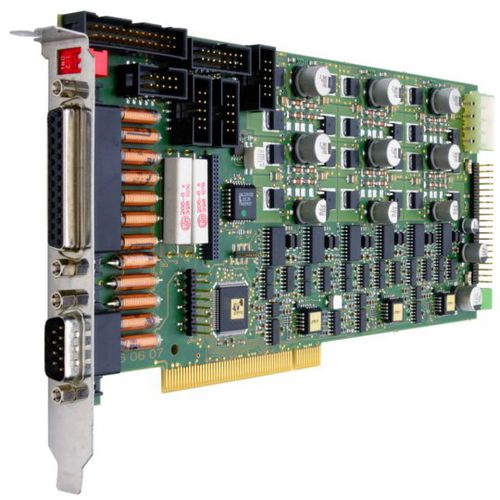

Stepper motor control LSTEP-PCI compact

compactmulti-axishigh-resolution

For positioning with the utmost precision The LANG LSTEP-PCI compact Positioning System is a high-resolution stepping motor controller in the form of a PCI plug-in module for the PC. This device is used to control three axes with 2/4 phase stepping motors. Communication between the PC and the controller takes place through the PCI bus topped by a Dual-Port Ram or the RS 232 interface. Dynamic micro step operations allow positioning processes to be done quickly and with the highest precision. The small dimensions of the PCI-board allow an integration in nearly every PC-housing. The integration of a controller and power amplifiers on a plug-in device for the PC provides compact, EMC-compliant systems without additional mechanical requirements. This solution is ideal for applications where cost is a sensitive factor. A wide range of equipment options provides more flexibility, allowing you to adapt the system to meet your individual needs. Our software WIN Commander also allows user-specific configuration of LSTEP compact. The free LANG API allows the integration into your own software environment.
