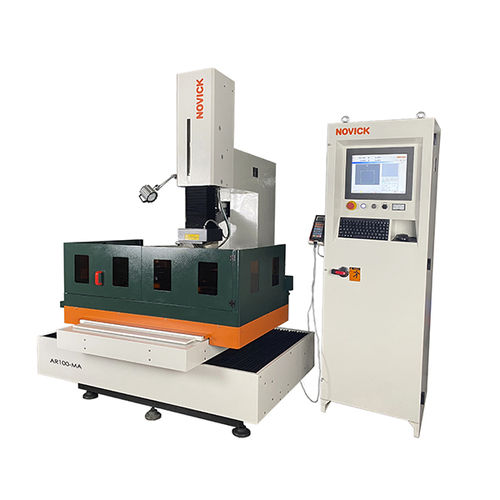

Wire-cut EDM AR100-MACNCprecision
Add to favorites
Compare this product
Characteristics
- Type
- wire-cut
- Other characteristics
- CNC, precision
- X travel
1,000 mm
(39.37 in)- Y travel
800 mm
(31.5 in)- Z travel
450 mm
(17.72 in)
Description
R & D Software System of AR-MA Series Features
Work Table Size: 1300x900mm
X/Y Axis Travel: 1000×800mm
Max. Cutting Thickness: 500mm
Max. Machining Taper: ±10º/80mm
Positioning accuracy: 0.018mm (ISO)
Repeat positioning accuracy:0.009mm (ISO)
The best surface roughness: Ra 0.8um
Machining accuracy: 0.010mm
AR Series Molybdenum Wire Cut EDM Configurations:
1. Imported linear guide, ball screw
2. X/Y axis DC servo
3. Moly wire constant tension system, wire guide
4. R & D reliable pulse power supply that is easy to use and maintain
5. Genuine Windows10 system
6. Built-in automatic programming system with time-sharing operation
7. Patented 120L three-layer high-profile working fluid filtration
8. USB, LAN, RS232 interface
9. Tool box, machine feet, workpiece pressure plate, bolt
