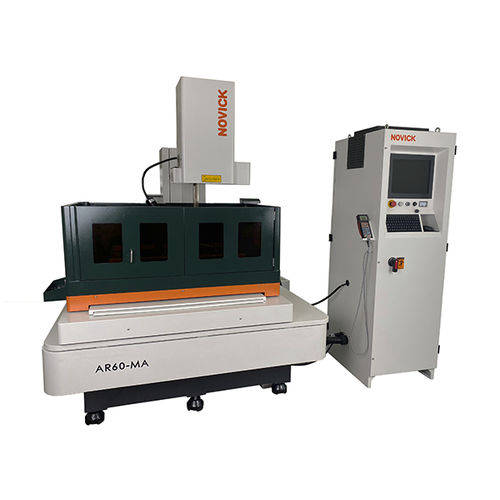

Wire-cut EDM AR60-MACNCprecision
Add to favorites
Compare this product
Characteristics
- Type
- wire-cut
- Other characteristics
- CNC, precision
- X travel
600 mm
(23.62 in)- Y travel
400 mm
(15.75 in)- Z travel
350 mm
(13.78 in)
Description
Work Table Size: 800x580mm
X/Y Axis Travel: 600×400mm
Max. Cutting Thickness: 400mm
Max. Machining Taper: ±15º/80mm (with guider)
Positioning accuracy: 0.010mm (ISO)
Repeat positioning accuracy:0.005mm (ISO)
The best surface roughness: Ra 0.8um
Machining accuracy: 0.010mm
AR Series Molybdenum Wire Cut EDM Configurations:
1. Imported linear guide, ball screw
2. X/Y axis DC servo
3. Moly wire constant tension system, wire guide
4. R & D reliable pulse power supply that is easy to use and maintain
5. Genuine Windows10 system
6. Built-in automatic programming system with time-sharing operation
7. 180L working fluid filtration system
8. USB, LAN, RS232 interface
9. Tool box, machine mattress iron, workpiece pressure plate, bolt
