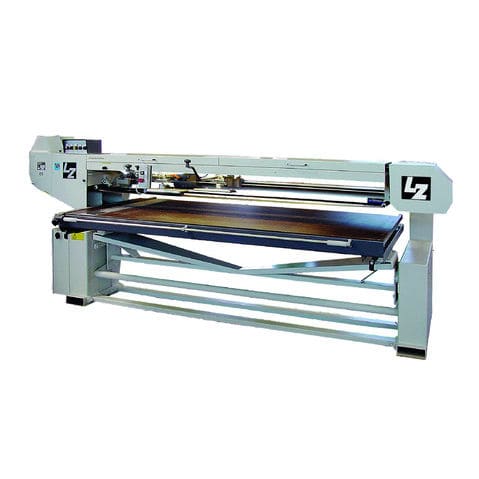

Horizontal disc grinding machine LZG-M-IIfor metal sheetsmanually-controlled
Add to favorites
Compare this product
Characteristics
- Type
- horizontal disc
- Applications
- for metal sheets
- Control type
- manually-controlled
- Power
5.5 kW
(7.48 hp)
Description
For grinding, matting and polishing steel. Belt width = 150 mm.
Range of table height adjustment: 350 mm
Technical Data:
Motor power: 5.5 kW, 400 V / 50 Hz
Belt speed: 22 m / Sec.
Right column opening: 1,000 x 350 mm
Pulleys: Diam. 300 mm
Max table load: 200 kg
Grinding shoe: 320 x 145 mm
Electric table height adjustment.
fold-out suction hood for better extraction
