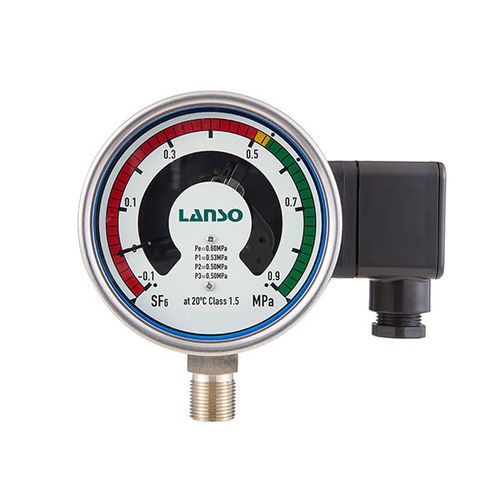

Temperature monitoring device ZMJ100P

densityvoltagemeasurement

These instruments are used to monitor SF6 gas density in sealed tanks. They are applied to indicate the gas density and to provide a signal outputs when the density reaches the set value. They are designed to monitor High Voltage systems. They can provide multiple solutions to support new substations and the intelligent transformation of existing substations. SF6 Gas Insulated Switchgear (GIS) SF6 Insulated Circuit Breakers SF6 Insulated Pole-Mounted Switch SF6 Insulated Transformers SF6 Insulated Mutual Inductor SF6 Insulated Busbar Systems 1. The temperature compensation device ensures higher measurement accuracy. 2. Suitable for indoor or outdoor installation 3. AISI 304 hermetically sealed stainless steel case 4. Gas connection tubes are made of AISI 316 stainless steel 5. The on-site display value and the output signals are not affected by the external environment (altitude factor, etc.) 6. Electric contact switch design can ensure the precise and stable SF6 gas density monitoring 7. Up to Four switch contacts can achieve overpressure alarm, dual alarm or double locking and many other solutions, ensuring the monitoring more secure and reliable 1. Case diameter: 100mm 2. Scale range: -0.1 to 0.9MPa (customizable) 3. Accuracy: (related to the measuring span; SF6 in gas phase) a) At 20°C: Class 1.0 or 1.5 b) -40°C to +60°C: Class 2.5 4. Degree of protection: IP65
