These instruments are used to monitor SF6 gas density in sealed tanks. They are applied to indicate the gas density and to provide a signal outputs when the density reaches the set value. They are able to transmit the real-time data of SF6 gas density remotely and realize the online remote monitoring. They are suitable for monitoring high-pressure system. The SF6 gas density data can be remotely monitored and transmitted by low-power, high anti-interference wireless communication methods. They can provide multiple solutions to support new substations and the intelligent transformation of existing substations.
· SF6 Gas Insulated Switchgear (GIS)
· SF6 Insulated Circuit Breakers
· SF6 Insulated Pole-Mounted Switch
· SF6 Insulated Transformers
· SF6 Insulated Mutual Inductor
· SF6 Insulated Busbar Systems

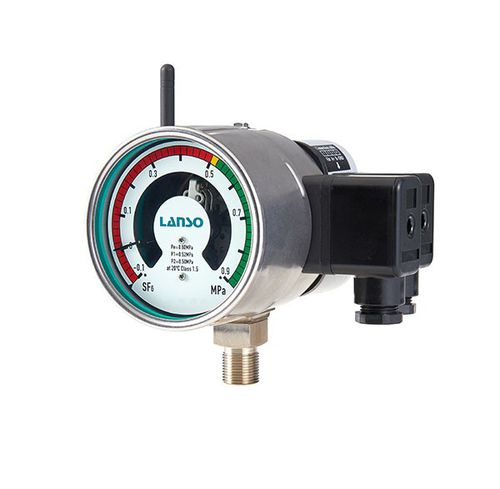

Feature of ZMJ100PRW Wireless Remote Transmission Density Monitor
The temperature compensation device ensures higher accuracy of measurements.
Suitable for indoor or outdoor installations.
AISI 304 hermetic sealed stainless steel case
Gas connexion tubes are made of stainless steel AISI 316.
Wireless communication and convenient for the networking of sites
Strong anti-interference capability and long distance transmission
Using the concentrator as a center, these instruments can achieve autonomous wireless networking and the concentrator outputs all monitoring data through the RS485.
Up to four pairs of contacts can achieve an overpressure alarm, a dual alarm or a double lock and many other options to make monitoring more secure and reliable.
