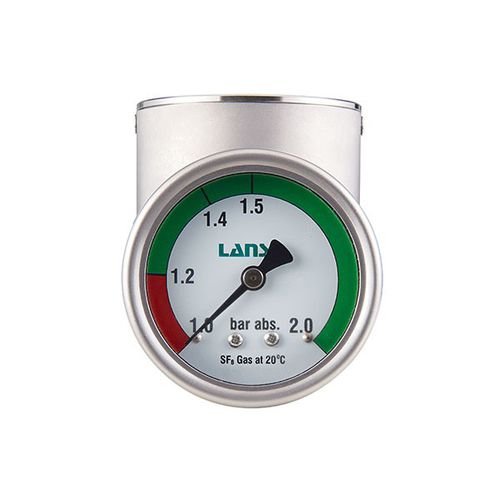

Density monitoring device DM60R

for tankSF6RS-485

These instruments are used to monitor the density of SF6 gas in sealed tanks. They are applied to indicate the gas density and reliably output SF6 gas density signal for remote monitoring. They can be widely used in monitoring medium voltage system. They can provide multiple solutions to support new substations and the intelligent transformation of existing substations. Application of DM60R Remote-Transmission Density Monitor SF6 gas Insulated RMU SF6 gas Insulated Switchgear Feature of DM60R Remote-Transmission Density Monitor The temperature compensation device ensures higher measurement accuracy. The RS485 remote function ensures remote monitoring The DM60R gas density meter is suitable for indoor or outdoor installation AISI 304 hermetically sealed stainless steel case Gas connection tubes are made of AISI 316 stainless steel The on-screen display value and output signals are independent of the impact of external environment, such as altitude. Technical Data of DM60R Remote-Transmission Density Monitor Case diameter: - Φ64mm Case material: - Stainless steel Scale range: - 1.0 to 2bar abs Accuracy: - Class 1.0 or 1.5 at20°C; class 2.5 at-40°C to+ 60°C Ambient conditions: - -40°C to +60°C, relative humidity ≤ 95%RH Degree of protection: - IP65 Leakage rate: - ≤1 × 10-9 Pa·m3/s （Helium leakage inspection） Contact type: - Magnetic snap-action switch (Maximum two groups, normally open or normally closed,customized by 3 groups according to users' needs) Pressure connection: - M24×1.5 (customizable) Installation method: - radial or axial Insulation properties:
