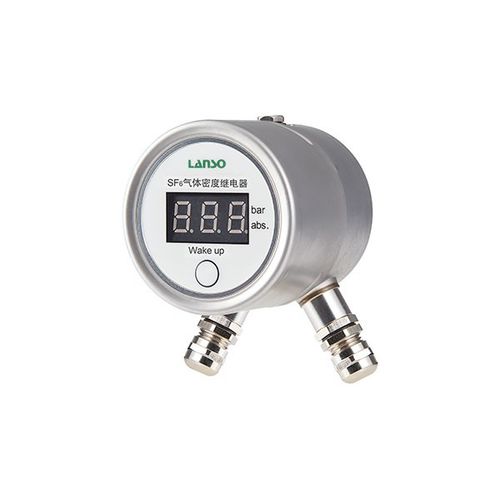

Density monitoring device DMJ60R

SF6RS-485digital

These instruments are used to monitor the density of SF6 gas in sealed tanks. They are applied to indicate the gas density and to provide a signal outputs when the density reaches the set value. They can transmit the real-time data of SF6 gas density remotely and achieve the online remote monitoring. They are applied to indicate the gas density and reliably output SF6 gas density signal for remote monitoring. They can be widely used in monitoring medium voltage system. They can provide multiple solutions to support new substations and the intelligent transformation of existing substations. Application of DMJ60R Digital Remote-Transmission Density Monitor SF6 gas Insulated RMU SF6 gas Insulated Switchgear Feature of DMJ60R Digital Remote-Transmission Density Monitor Digital display and control on-site The easy to expand bus interface RS485 is capable of achieving telemetry and remote control function, which shows strong anti-electromagnetic interference capabilities. Suitable for installation indoor or outdoor. The display value on-site and the output signal of the external environment are not affected (altitude factor, etc.) Utmost three switching contact pairs Small, customised, convenient and reliable installation interface Options of DMJ60R Digital Remote-Transmission Density Monitor Measuring range Ambient condition Outlet Direction and cable length Installation method Suitable for High-altitude environment Used to detect SF6, Air, N2, SF6 + N2 and other gases
