Temperature monitoring device ZMJ100XD

densityalarmair

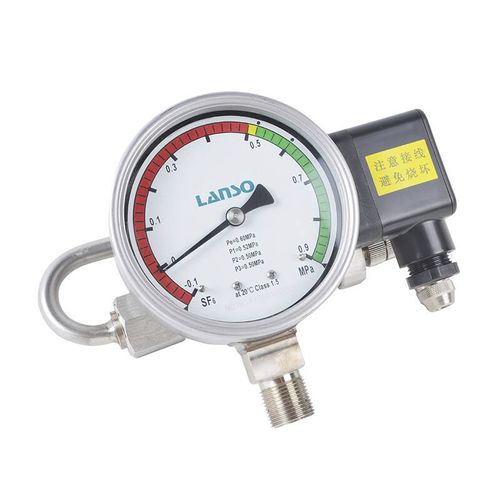

These instruments are used to monitor SF6 gas density in sealed tanks. They are applied to indicate gas density and to provide a signal outputs when the density reaches preset threshold values. They are designed to monitor High Voltage systems. Application of ZMJ100XD Series Density Monitors Gas Insulated Switchgear (GIS) Gas Insulated Lines (GIL) SF6 circuit breakers Gas insulated busbar systems Features of ZMJ100XD Series Density Monitors Using gas compensation, greater precision of the set point Class 1.0 full scale display Indoor or outdoor installation suitable The micro switch will switch freely between open and closed points. Up to four node pairs can be realised with several choices, such as double alarms and double locks, making monitoring more safe and efficient Strong resistance to shock No need to fill oil, no danger of oil leakage Normally closed contacts will not falsely alarm due to vibration Options of ZMJ100XD Series Density Monitors Different measuring ranges Wide temperature range -60°C to +60°C Can detect SF6, Air, N2, SF6+N2 and other gases Remote transmission function
