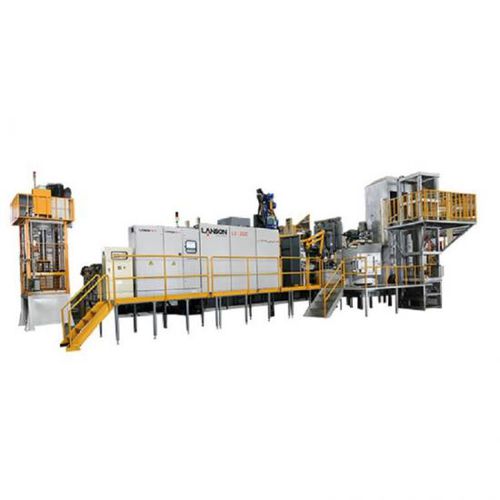

Cold chamber die casting machine LS1300

Clamping Force - kN - 13000 Clamping Stroke - mm - 1000 Ejector Force - kN - 560 Ejector Stroke - mm - 200 Die Height （Min.-Max.） - mm - 450-1200 Platen Size（HxV） - mm - 1760X1760 Space Between Tie Bars（HxV） - mm - 1100X1100 Injection Force（with intensification） - kN - 1100 Injection Stroke - mm - 910 Plunger Diameter - mm - 100-140 Injection Weight - kg - 13.4-26.3 Casting Pressure（with intensification） - MPa - 140-71 Casting Area - cm2 - 928-1830 Max.Casting Area (40MPa) - cm2 - 3250 Shot Injection Position（below center line） - mm - –160，–320 Plunger Penetration - mm - 350 Diamater Of Pressure Chamber Flange - mm - 240 Height Of Pressure Chamber Flange - mm - 25 Hydraulic Working Pressure - MPa - 16 Hydraulic Oil Tank Capacity - L - 2000 Machine Dimensions（LxWxH） - mm - 10900X4250X4500 Clamping system 1)Increase the die-cut space design to accommodate larger molds. 2)Larger mold clamping margin design, more effective to meet customer needs. 3) Template thickened design, more rigid. 4) The patented die-casting machine has a large-bar thread dustproof and waterproof structure to improve the stability and service life of the column. 5) The unique clamping hydraulic system combines the characteristics of the elbow mechanism to ensure high response, high efficiency and high safety. 6) Extremely short mode-locked return path minimizes back pressure and increases system speed. 1)The energy is added to the large design, the energy is sufficient, the system pressure drop is reduced, the injection repeatability is high, and the pressure and speed are more stable.
