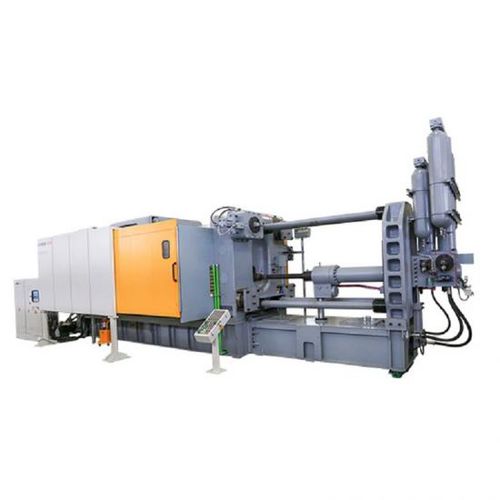

Cold chamber die casting machine LS2000

Clamping Force - kN - 20000 Clamping Stroke - mm - 1400 Ejector Force - kN - 650 Ejector Stroke - mm - 300 Die Height （Min.-Max.） - mm - 650-1600 Platen Size（HxV） - mm - 2150X2150 Space Between Tie Bars（HxV） - mm - 1350X1350 Injection Force（with intensification） - kN - 1510 Injection Stroke - mm - 1050 Plunger Diameter - mm - 120-160 Injection Weight - kg - 22.3-39.6 Casting Pressure（with intensification） - MPa - 133-75 Casting Area - cm2 - 1500-2660 Max.Casting Area (40MPa) - cm2 - 5000 Shot Injection Position（below center line） - mm - –175，–350 Plunger Penetration - mm - 450 Diamater Of Pressure Chamber Flange - mm - 260 Height Of Pressure Chamber Flange - mm - 30 Hydraulic Working Pressure - MPa - 16 Clamping system 1)Increase the die-cut space design to accommodate larger molds. 2)Larger mold clamping margin design, more effective to meet customer needs. 3) Template thickened design, more rigid. 4) The patented die-casting machine has a large-bar thread dustproof and waterproof structure to improve the stability and service life of the column. 5) The unique clamping hydraulic system combines the characteristics of the elbow mechanism to ensure high response, high efficiency and high safety. 6) Extremely short mode-locked return path minimizes back pressure and increases system speed. 1)The energy is added to the large design, the energy is sufficient, the system pressure drop is reduced, the injection repeatability is high, and the pressure and speed are more stable. 2)The injection valve plate adopts an integral design, which is completed in one process to ensure the accuracy and stability of the injection.
