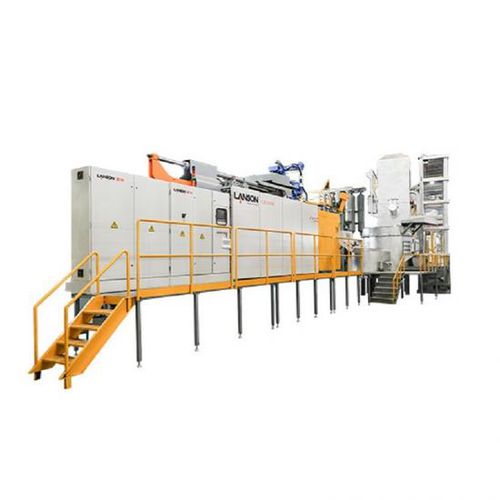

Cold chamber die casting machine LS2500

Clamping Force - kN - 25000 Clamping Stroke - mm - 1500 Ejector Force - kN - 750 Ejector Stroke - mm - 300 Die Height （Min.-Max.） - mm - 750-1800 Platen Size（HxV） - mm - 2350X2350 Space Between Tie Bars（HxV） - mm - 1500X1500 Injection Force（with intensification） - kN - 1750 Injection Stroke - mm - 1100 Plunger Diameter - mm - 140-180 Injection Weight - kg - 31.7-52.5 Casting Pressure（with intensification） - MPa - 113-68 Casting Area - cm2 - 2210-3675 Max.Casting Area (40MPa) - cm2 - 6250 Shot Injection Position（below center line） - mm - –200，–400 Plunger Penetration - mm - 500 Diamater Of Pressure Chamber Flange - mm - 280 Height Of Pressure Chamber Flange - mm - 30 Hydraulic Working Pressure - MPa - 16 Hydraulic Oil Tank Capacity - L - 3500 Machine Dimensions（LxWxH） - mm - 14000X5000X5000 1)Increase the die-cut space design to accommodate larger molds. 2)Larger mold clamping margin design, more effective to meet customer needs. 3) Template thickened design, more rigid. 4) The patented die-casting machine has a large-bar thread dustproof and waterproof structure to improve the stability and service life of the column. 5) The unique clamping hydraulic system combines the characteristics of the elbow mechanism to ensure high response, high efficiency and high safety. 6) Extremely short mode-locked return path minimizes back pressure and increases system speed.
