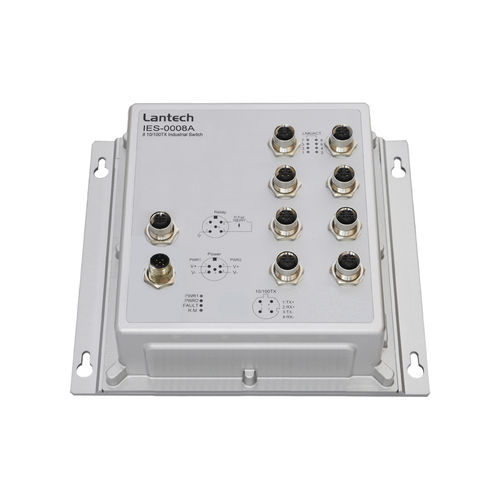

Unmanaged ethernet switch IES-0008A series

8 portsDIN railwall

8 10/100TX IP67/IP54 rated EN50155 Unmanaged Ethernet Switch EN50155 verification / E-mark certified Provides M12 connector with IP67 or IP54 rated protection Wide Operating Temperature from -40°C to 75°C Wide range dual power inputs 12~90VDC Lantech IES-0008A (IP67/IP54) is an 8 10/100 Base-TX with M12-connctor unmanaged industrial Ethernet switch for IP67 or IP54 rated protection, which meets the high reliability requirements demanded by industrial rolling stock applications. The IES-0008A (IP67/IP54) is designed to meet with critical network environment with IP67/54 enclosure and M12 connectors for protection against dust and water. IP67 model can be immersed 1 meter under water for 30 minutes long, so it is the best to place in the highly damp and moisture area in the train, vehicle or rail-side. Both have passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing such as Free fall, Shock, and Vibration. For a greater flexibility in application the IES-0008A (IP67/IP54) supports an extended operating temperature range from -40°C to 75°C. The wide range dual power input from 12V~72V fits with most of train/vehicle usage. With EN45545-2 Fire & Smoke, EN50155 verification and E-mark certification, the IES-0008A (IP67/IP54) is best for railway and vehicle applications.
