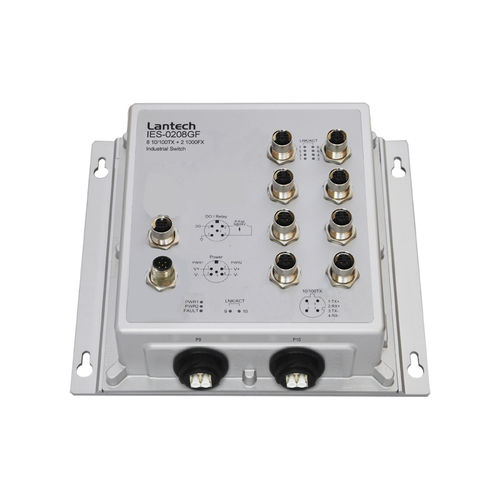

Unmanaged ethernet switch IES-0208GF series
10 portsgigabitDIN rail

Unmanaged ethernet switch - IES-0208GF series - Lantech Communications Europe GmbH - 10 ports / gigabit / DIN rail
Unmanaged ethernet switch - IES-0208GF series - Lantech Communications Europe GmbH - 10 ports / gigabit / DIN rail
Unmanaged ethernet switch - IES-0208GF series - Lantech Communications Europe GmbH - 10 ports / gigabit / DIN rail - image - 2
Add to favorites
Compare this product


Characteristics

Type
unmanaged
Number of ports
10 ports
Network
gigabit
Mounting
DIN rail, wall
Other characteristics
redundant, EN50155, IP67
Applications
industrial, for railway applications

Description

8 10/100TX + 2 1000FX Industrial Unmanaged Switch EN50155/ E-marking and ISO 7637** compliance Provides M12 connector with IP67 / 43 rated protection Wide Operating Temperature from -40°C to 75°C Wide range redundant power inputs 9.5~56VDC 110V dual power input 77~137.5V for 110V model Lantech IES-0208GF (IP67/IP43) is an 8 10/100 Base-TX+2 GigaFX with M12-connctor unmanaged industrial switch for IP67 or IP43 rated protection, which meets the high reliability requirements demanded by industrial rolling stock applications. The IES-0208GF (IP67/IP43) is designed to meet with critical network environment with IP67/43 enclosure and M12 connectors for protection against dust and water. IP67 model can be immersed 1 meter under water for 30 minutes long, so it is the best to place in the highly damp and moisture area in the train, vehicle or rail-side. Both have passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing such as Free fall, Shock, and Vibration. For a greater flexibility in application the IES-0208GF (IP67/IP43) supports an extended operating temperature range from -40°C to 75°C. The wide range redundant power input from 9.5V~56V fits with most of train/vehicle usage. The 110V model offers dual power supply that can be powered from 43V to 137.5VDC. The IES-0208GF (IP67/IP43) is compliant with EN50155/ 50121-3-2/ 50121-4 (railway applications), EN45545-2 R24/R25 and E-Mark, making the switch suitable for various industrial rolling stock applications.
