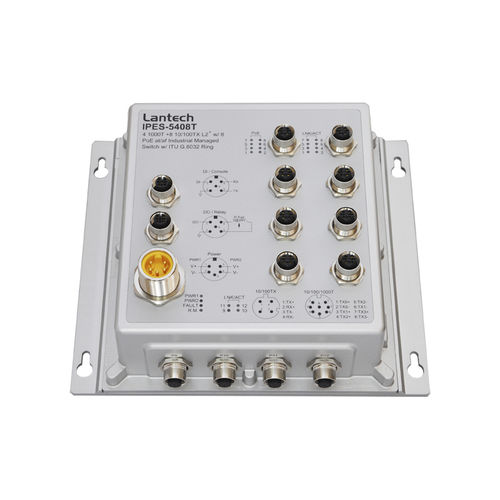

Managed ethernet switch IPES-5408T series

12 portsgigabitwireless

8 10/100TX + 4 10/100/1000T X-coded L2+ 8 PoE at/af EN50155 Managed Ethernet Switch w/ enhanced G.8032 Ring EN50155/61373/45545-2 verification Built-in IEC 61375-3-4 ECN (Ethernet Consist Network) to work with IEC61375-2-5 ETBN IEEE802.3at/af up to 30W per port; PoE management incl. detection and scheduling WV dual input steps down to 54V output PoE max.80W; optional 24V input can boost to 54V output PoE max 80W Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP ; support MRP Ring Environmental Monitoring for temp., voltage , current and total PoE load Miss-wiring avoidance & node failure protection Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ Protocol based VLAN ; IPv4 Subnet based VLAN Optional bypass in case of power failure (IP67 only) N-key configurator** for upgrading, auto/editable configuration Back up and restoration without computer IP67/IP54 housing; User friendly UI, including auto topology drawing; Complete CLI Lantech IPES-5408T (IP67/IP54) is a high performance L2+ (Gigabit uplink) Ethernet switch with 8 10/100TX(D-coded) + 4 10/100/1000T(X-coded) w/8 PoE 802.3af/at ports by M12 provides L2 wire speed and advanced security function for network aggregation deployment.
