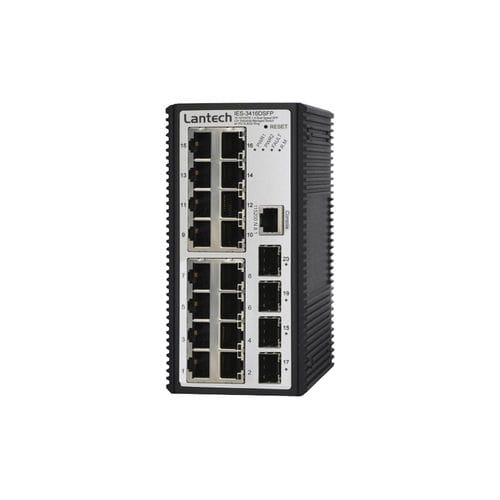

Managed ethernet switch IES-3416DSFP series

20 portsgigabitlayer 2

16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP ; support MRP ring Miss-wiring avoidance & Node failure protection User friendly UI, including auto topology drawing and DDM threshold with dB values***; Complete CLI Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ Protocol based VLAN ; IPv4 Subnet based VLAN Dual input voltage 9~60VDC (Standard model); Single isolated input power 90~305VAC/120~430VDC (HV model) Optional Environmental Monitoring for temp., voltage and current. (-M model) E-marking certificate for vehicle application (24V model) N-key configurator** for upgrading, auto back up /editable restoration without compute Lantech IES-3416DSFP is a high performance L2+ (Gigabit uplink) switch with 16 10/100TX + 4 100/1000M SFP which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN model with easy configuration.
