Signal splitter POS-100A

PoEadjustable power outputstandard

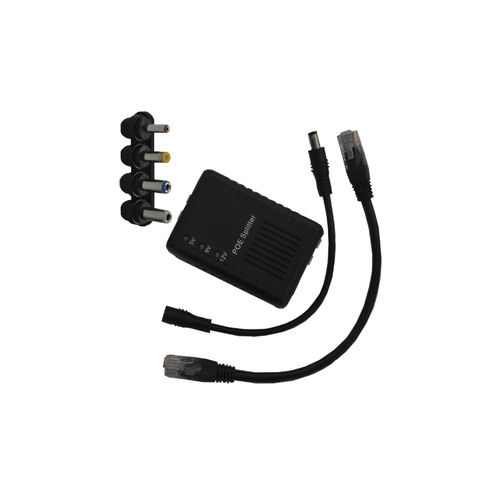

Adjustable Output Power Over Ethernet Splitter Encloses Φ2.5, Φ2.1, Φ1.7 and Φ1.3 DC jacks IEEE802.3af compliance Short circuit protection Lantech POS-100A is the most comprehensive splitter compliant with IEEE 802.3af PoE standard in the market. It’s well-cover output voltage 5V, 9V, 12V range can connect with most market PDs (Power Device) including Wireless AP, Camera, VOIP phone etc. Lantech POS-100A encloses Φ2.5, Φ2.1, Φ1.7 and Φ1.3 DC jacks to suit with every PDs power diameter. Lantech POS-100A splits data and power signal over same Ethernet UTP cable and transfer input 48V (PoE standard) to 3 kinds voltages to meet with each PD needs. The inside PoE chip can correspond to PoE impedance signal sent by PoE injector or PSE (Power Source) to handshake with PoE standard first and then to deliver 48V power to drive PD, in which it prevents the risk of burning down the PD. The DIP switch of POS-100A allows users to change the output voltage easily and the LEDs shows the current output voltage. Lantech POS-100A’s light-weight and compact design can easily go with any PD’s installation. Lantech POA-100A injector is the best kit for POS-100A for PoE solution.
