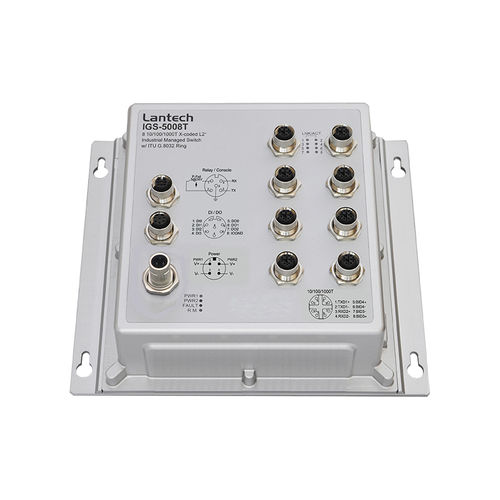

Managed ethernet switch IGS-5008T series

8 portsgigabit Ethernetwith housing

8 10/100/1000T X-coded EN50155 L2+ Managed Ethernet Switch w/ Enhanced G.8032 Ring EN50155/61373/45545-2 verification; 16.8~137.5VDC (WVI) input Built-in IEC 61375-3-4 ECN (Ethernet Consist Network) to work with IEC61375-2-5 ETBN Galvanic isolation between input and system Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP ; support MRP Ring IP67 / IP54 Aluminum housing for best heat dissipation and preventing moist ingress Optional bypass in case of power failure (IP67 only) Environmental Monitoring for temp., voltage, current Miss-wiring avoidance & node failure protection User friendly UI, including auto topology drawing; Complete CLI Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ Protocol based VLAN ; IPv4 Subnet based VLAN N-key configurator** for upgrading, auto back up /editable restoration without computer Lantech IGS-5008T (IP67/IP54) is a high performance EN50155 L2+ all Gigabit Ethernet switch with 8 10/100/1000T at M12 X-coded providing L2 wire speed and advanced security function for network aggregation deployment. It houses in an IP67/IP54 aluminum compact enclosure that is waterproof and will prevent moisture ingress due to temperature fluctuations.
