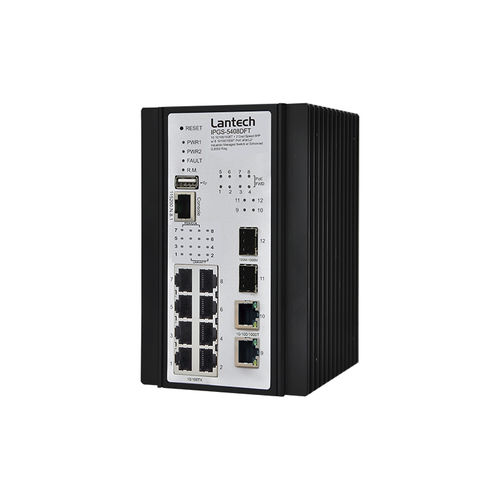

Managed ethernet switch IPGS-5408DFT-PT series

12 portsgigabitDIN rail

10 10/100/1000T + 2 Dual Speed SFP w/ 8 10/100/1000T PoE af/at IEC 61850-3 Managed Ethernet Switch w/ Enhanced Ring & MMS Compliant with IEC61850-3 & IEEE1613 Built-in MMS server based on IEC61850-90-4 switch data modeling for SCADA with monitoring and control Support IEEE802.3at/af up to 30W per port PoE management incl. Detection and Scheduling Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI / RSTP; support MRP ring Miss-wiring avoidance & node failure protection User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI. Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ Protocol based VLAN ; IPv4 Subnet based VLAN Environmental Monitoring for temp, voltage and current Wide range dual DC input from ±45V~56V; HV mode with isolated 90~305VAC/120~430VDC USB port to backup, restore the configuration file and upgrade firmware (-U model) HV or DC input voltage model selection EN50121-4/50121-5 verification OVERVIEW Lantech IPGS-5408DFT-PT is a high performance L2+ (Gigabit uplink) switch with 8 10/100/1000T + 2 10/100/1000T + 2 Dual Speed SFP that complies with IEC 61850-3 & IEEE 1613. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN model.
