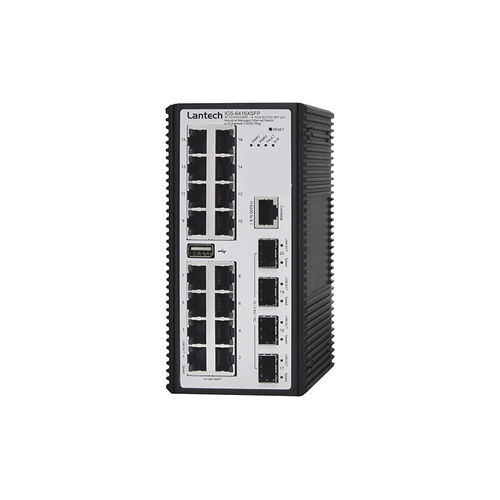

Managed ethernet switch IGS-6416XSFP series

20 portsgigabitlayer 2

16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring; 24V/HV/WV input models Auto-sensing triple speed1G/2.5G/10G SFP+ Uplink Cage Support PXE to verify switch firmware with the latest or certain version on server Enhanced G.8032 ring protection < 20ms for single ring. Supports enhanced mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 8 MSTI /RSTP ; support MRP ring Miss-wiring avoidance & node failure protection User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS ACL L2/L3,TACACS+, QinQ Protocol based VLAN ; IPv4 Subnet based VLAN At dual Input voltage 24VDC (24V model) and 16.8~137.5VDC (WV model); Single input power 90~305VAC/120~430VDC (HV model) Enhanced Environmental Monitoring for temp. actual input voltage, current and total power load Wide range operation temperature (-E model):-40~75C/-40~167F; Fan-less design EN50155/61373/50121-4/50121-3-2 verification Lantech IGS-6416XSFP is a high performance L2+ (All Gigabit) Ethernet switch with 16 100/1000T + 4 1G/2.5G/10G auto sensing SFP+ which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring.
