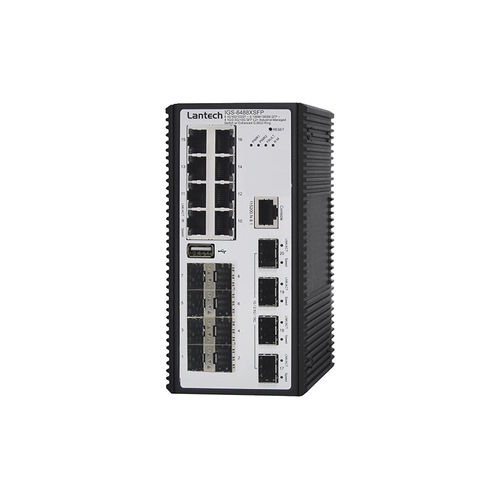

Managed ethernet switch IGS-6488XSFP series

20 portsgigabitDIN rail

8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring ; 24V/HV input models Auto-sensing SFP/ SFP+ Uplink Cage Dual 24V or 48V input Support PXE to verify switch firmware with the latest or certain version on server Enhanced G.8032 ring covers multicast packets; MSTP 8 MSTI /RSTP ; support MRP ring Miss-wiring avoidance & node failure protection User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS ACL L2/L3,TACACS+, QinQ Protocol based VLAN ; IPv4 Subnet based VLAN USB port to backup, restore the configuration file and upgrade Dual input voltage 12~60VDC (24V model); Single isolated input power 90~305VAC/120~430VDC (HV model) Enhanced Environmental Monitoring for temp. actual input voltage, current and total power load Wide range operation temperature (-E model):-40~75C/-40~167F; Fan-less design Overview Lantech IGS-6488XSFP is a high performance L2+ (All Gigabit) Ethernet switch with 8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G/10G SFP+ auto-sensing cage which provides L2 wire speed and advanced security function for network aggregation deployment.
