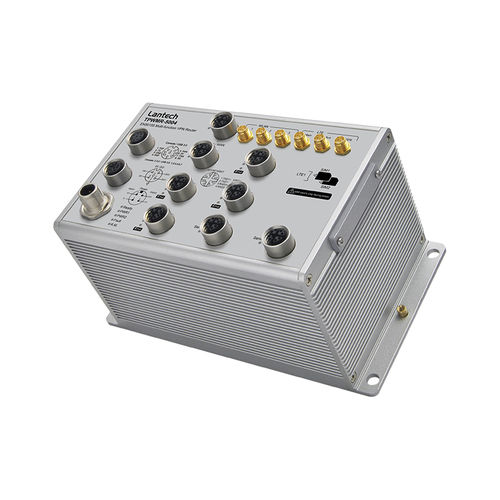

Wireless communication router TPWMR-5004 series

managedLANEthernet

EN50155 Multifunction VPN Router w/1x WiFi 11ac + 1 LTE 4G + 2 serial ports + 4 Gigabit X-coded (PoE) Switch + 2 WAN/LAN w/Load Balancing, VPN, Protocol Gateway, Storage**;WV input Built-in 4 Gigabit X-coded PoE Ethernet managed switch +2 WAN/LAN ports Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model) WIFI radio for 802.11ac/a/b/g/n with 5GHz or 2.4GHz Support WIFI 802.11e traffic prioritization and WMM MIMO technology 3T3R up to 6 antenna; Detachable antenna connectors with 6 SMA/QMA** type incl. 3 WIFI + 3 LTE Support Client-base roaming Supports AP/ Bridge/ Client/ MESH modes Support 802.11s Wireless Mesh Network Advanced wireless security WEP64/128bits/ WPA/ WPA-PSK (TKIP,AES)/ WPA2/ WPA2-PSK (TKIP,AES) VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE Load Balancing built-in 5 mechanisms Optional EMMC Flash storage on-board** Optional eSIM chip enables router with versatile data plans** Support NAT and Firewall Support Modbus gateway on serial ports Support 2 RS422/RS485 ports with 2.5KV isolation or 2x RS232 ports Optional 2 GT smart bypass protection Galvanic isolation on WV model from 16.8V~137.5V input PoE model with PoE budget 60W Environmental monitoring for router inside info with voltage, current, temperature and total PoE load; Wi-Fi & LTE graphic signal strength Editable login page of captive portal for hot-spot application USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware
