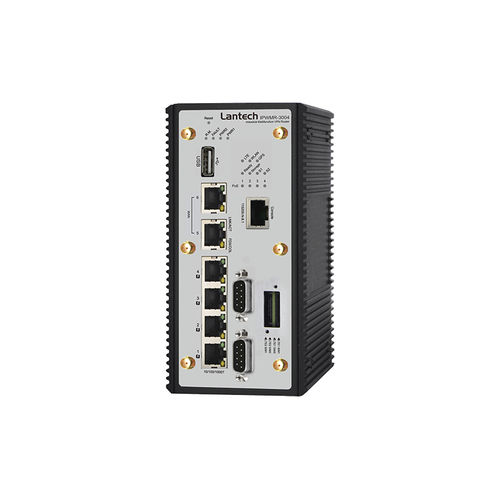

Data communication router IPWMR-3004 series

wireless4G LTEWAN

Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + up to 2 LTE 4G + 2 serial ports + 4 Gigabit Ethernet PoE Switch + 2 WAN ports w/ Load Balancing, VPN, Protocol Gateway, Storage**; 24V input Up to 2 concurrent WIFI 11ac and redundancy(1L-2AC model) Up to 2 concurrent mobility for 3G/4G LTE Link&GPS(2L-1AC model/4 SIMs) Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model) Built-in 4 Gigabit PoE at/af Switch with budget 80W@12V/24V/48V Dual radio for 802.11ac/a/b/g/n with concurrent 5GHz & 5GHz bands up to 2.6Gbps Wi-Fi bandwidth(2AC model) WIFI radio for 802.11ac/a/b/g/n with 5GHz or 2.4GHz Support WIFI 802.11e traffic prioritization and WMM MIMO technology 3T3R up to 6 antenna(2AC); SMA type external antenna Support Client-base roaming Supports AP/ Bridge/ Client/ MESH modes Support 802.11s Wireless Mesh Network Advanced wireless security WEP64/128bits/ WPA/ WPA-PSK (TKIP,AES)/ WPA2/ WPA2-PSK (TKIP,AES) VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE Load Balancing built-in 5 mechanisms Optional EMMC Flash storage on-board** Optional eSIM chip enables router with versatile data plans** Support NAT and Firewall Support Modbus gateway on serial ports Support 2 RS422/RS485 ports with 2.5KV isolation or 2x RS232 ports Input voltage selection 9~56VDC (24V model)
