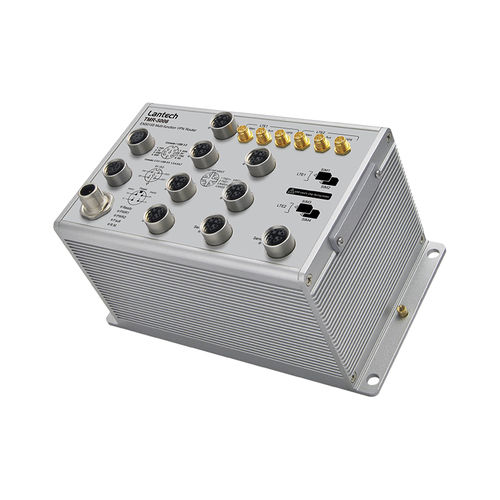

Data communication router TMR-5006 series

managed4GIP

EN50155 Multifunction VPN Router up to 2 LTE 4G + 2 serial ports + 6 Gigabit X-coded Ethernet Switch w/Load Balancing, VPN, Protocol Gateway, Storage**; WV input Built-in 6 Gigabit X-coded Ethernet managed switch; Up to 2x LTE 4G Module ( 4SIMS) Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model) VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE Load Balancing built-in 5 mechanisms Optional EMMC Flash storage on-board** Optional eSIM chip enables router with versatile data plans** Support NAT and Firewall Support Modbus gateway on serial ports Support 2 RS422/RS485 ports with 2.5KV isolation or 2x RS232 ports Optional 2 GT smart bypass protection Galvanic isolation on WV model from 16.8V~137.5V input Environmental monitoring for router inside info with voltage, current, temperature; LTE graphic signal strength Editable login page of captive portal for hot-spot application USB port for backup, restore the configuration file and upgrade firmware; Dual image firmware IP 65 /54 Aluminum housing for best heat dissipation and preventing moist ingress EN50155/61373/45545verification for railway application
