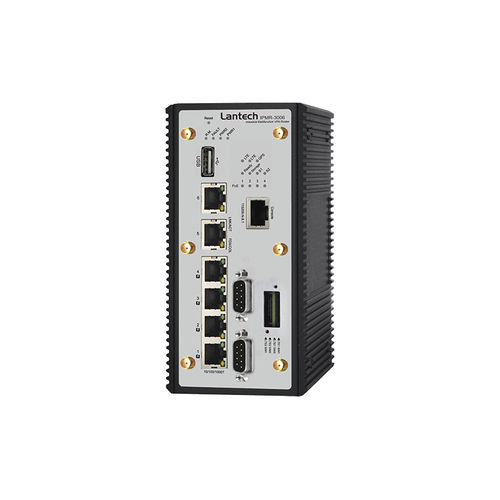

4G communication router IPMR-3006 series

LTERS2324G LTE

Industrial Multifunction VPN Router w/up to 2 LTE 4G + 2 serial ports + 6 Gigabit Ethernet Switch(incl. 4 PoE) w/ Load Balancing, VPN, Protocol Gateway, Storage**; 24V input Up to 2 concurrent mobility for 3G/4G LTE Link&GPS(2L model/4 SIMs) Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model) Built-in 6 Gigabit Ethernet switch including4 PoE at/af w/budget 80W VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE Load Balancing built-in 5 mechanisms Optional EMMC Flash storage on-board** Optional eSIM chip enables router with versatile data plans** Support NAT and Firewall Support Modbus gateway on serial ports Support 2 RS422/RS485 ports with 2.5KV isolation or 2x RS232 ports Input voltage selection 9~56VDC (24V model) Environmental monitoring for router inside info with voltage, current, temperature and total PoE load; LTE graphic signal strength Editable login page of captive portal for hot-spot application USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware ITxPT compliant w/ ignition function**
