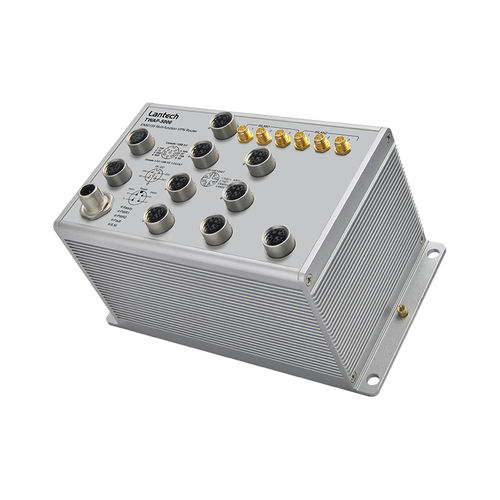

Wireless communication router TWAP-5006 series

EthernetRS232WiFi

EN50155 Multifunction VPN Router w/up to 2x WiFi 11ac + 2 serial ports** + 6 Gigabit X-coded Ethernet Switch w/Load Balancing, Protocol Gateway, VPN, Storage**; WV input Built-in 6 Gigabit X-coded Ethernet switch Up to 2 WIFI radio for 802.11ac/a/b/g/n with 5GHz or 2.4GHz Support WIFI 802.11e traffic prioritization and WMM MIMO technology 3T3R up to 6 antenna; Detachable antenna connectors with 6 SMA/QMA** type incl. 3 WIFI Support Client-base roaming Supports AP/ Bridge/ Client/ MESH modes Support 802.11s Wireless Mesh Network Advanced wireless security WEP64/128bits/ WPA/ WPA-PSK (TKIP,AES)/ WPA2/ WPA2-PSK (TKIP,AES) VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE Load Balancing built-in 5 mechanisms Optional EMMC Flash storage on-board** Support NAT and Firewall Optional support Modbus gateway on serial ports Optional Support 2 RS422/RS485 ports with 2.5KV isolation or 2x RS232 ports Optional 2 GT smart bypass protection Galvanic isolation on WV model from 16.8V~137.5V input Environmental monitoring for router inside info with voltage, current, temperature; Wi-Fi graphic signal strength Editable login page of captive portal for hot-spot application USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware
