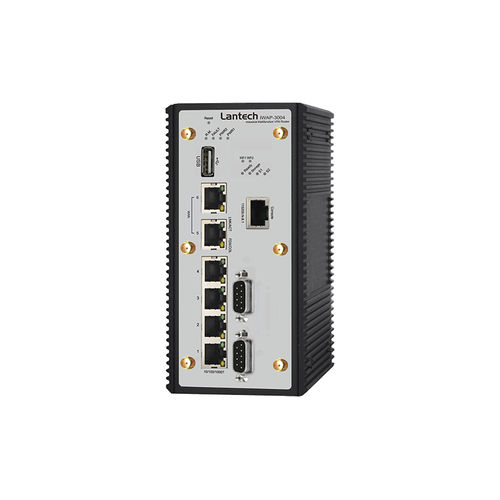

Wireless communication router IWAP-3004 series

RS232WANWiFi

Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + 2 serial ports** + 4 Gigabit Ethernet Switch+ 2 WAN ports w/Load Balancing, VPN, Protocol Gateway, Storage**; 24V/HV input Up to 2 concurrent WIFI 11ac and redundancy (2AC model) Built-in 4 Gigabit Ethernet switch + 2 WAN ports Dual radio for 802.11ac/a/b/g/n with concurrent 5GHz & 5GHz bands up to 2.6Gbps Wi-Fi bandwidth(to 2AC model) WIFI radio for 802.11ac/a/b/g/n with 5GHz or 2.4GHz Support WIFI 802.11e traffic prioritization and WMM MIMO technology 3T3R up 6 antenna(2AC); SMA type external antenna Support Client-base roaming Supports AP/ Bridge/ Client/ MESH modes Support 802.11s Wireless Mesh Network Advanced wireless security WEP64/128bits/ WPA/ WPA-PSK (TKIP,AES)/ WPA2/ WPA2-PSK (TKIP,AES) VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE Load Balancing built-in 5 mechanisms Optional EMMC Flash storage on-board** Support NAT and Firewall Support Modbus gateway on serial ports Support 2 RS422/RS485 ports with 2.5KV isolation or 2x RS232 ports Dual Input voltage 9~56VDC Environmental monitoring for router inside info with voltage, current, temperature; Wi-Fi graphic signal strength Editable login page of captive portal for hot-spot application USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware ITxPT compliant w/ ignition function**
