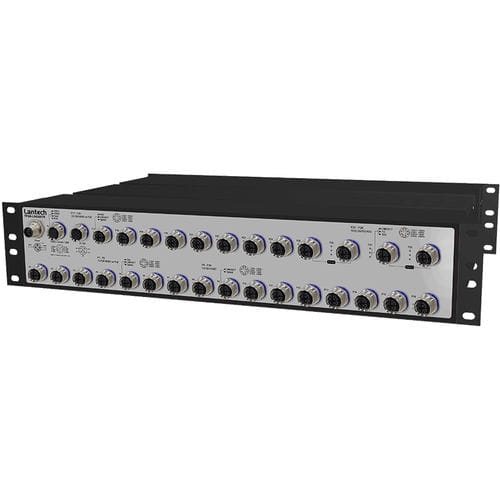

Managed ethernet switch TPGS-L6424XTR series

28 portslayer 2layer 3

Lantech T(P)GS-L6424XTR is a high performance OS3 full Gigabit Ethernet switch with 24 10/100/1000T + 4 1G/2.5G/5G/10G copper M12 X-coded. PoE model has 8/16 PoE 802.3af/at ports which provides advanced security function for network aggregation deployment. Up to 8/16 PoE at/af ports w/advanced PoE management and PoE galvanic isolation; Ethernet power input galvanic isolation Compliant with 802.3af/at standard, the PoE model is able to feed each PoE port up to 30 Watt at each PoE port for various IP PD devices. It supports advanced PoE management including PoE detection and scheduling. PoE detection can detect if the connected PD hangs then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Each PoE ports can be Enabled/disabled, get the voltage, current, Watt, and temperature info displayed on WebUI. Galvanic isolation between power input and Ethernet power system, also the PoE galvanic isolation provides insulation between the power input to PoE Ethernet ports, preventing cabling and grounding incidents from damaging the Ethernet switch. The efficiency of the galvanically decoupled voltage converters can reach above 90%. Lantech OS3 Platform with complete L2 management and upgradable optional L3 & communication protocols The switch runs Lantech OS3 platform which is powerful with complete Layer 2 management features and optional upgradable for future expansion, such as Layer 3 Lite, Layer 3, IEC61375-2-5 (ETBN), etc. To learn more about the Lantech OS3 Platform, please refer to Lantech OS3/OS4 platform
