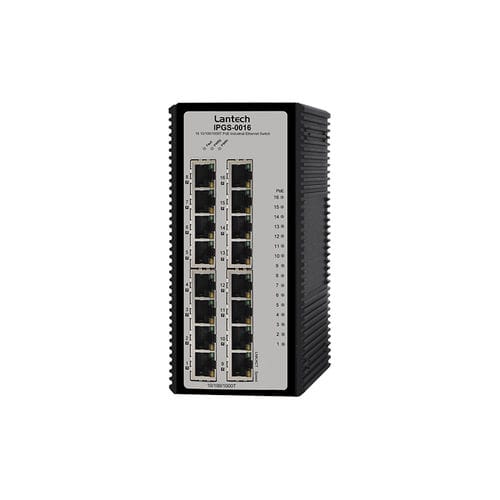

Unmanaged ethernet switch IPGS-0016 series

16 portswirelessDIN rail

16 10/100/1000T PoE at/af Industrial Unmanaged Ethernet Switch Support IEEE802.3at/af up to 30W per port Dual 9V~36VDC input compliant with ISO 7637-2 (24V model) Dual 44~56VDC input (48V model) Galvanic isolation protection (power input /Ethernet port to system/case ground; power input to Ethernet port) Max PoE budget 100W at 24V input; 240W at 48V input Relay alarm output for power fail and alarm E-marking certificate for vehicle application (-24V model) OVERVIEW Lantech IPGS-0016 is a high performance 16 10/100/1000T industrial Ethernet switch with w/16 PoE 802.3af/at ports. Galvanic isolation for dual 24V/48V wide input range The IPGS-0016 supports IEEE802.3af/at standard which can feed HI-power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, high power wireless AP etc. The IPGS-0016-24V accepts power input 9~36VDC and is compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start. 48V model accept 45~56VDC power input and can feed 48V output for PoE feeding in vehicle at max 240W @48V input. E-marking certificate, High reliability and extended working temperature Lantech IPGS-0016 provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, Wireless backhaul, Semi-conductor factory and assembly lines. The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C.
