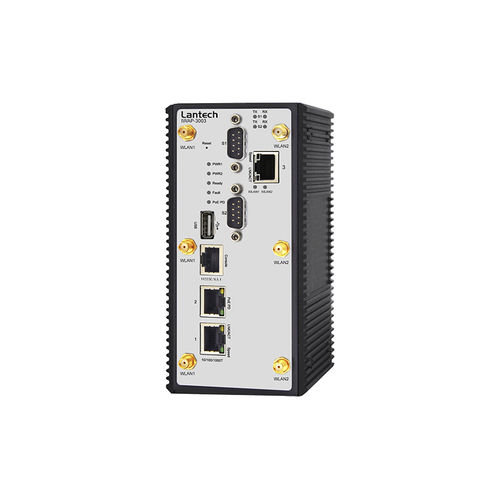

WAN communication router IWAP-3003 series

RS232RS485WiFi

Industrial Multifunction VPN Router w/up to 3x WiFi 11ac + up to 4 serial ports + 3 Gigabit Ethernet (incl.1 PD) w/Load Balancing, VPN, Protocol Gateway, Storage**; 12V/ 24V/ WV input Up to 3 concurrent WI-FI 11ac and redundancy (3AC model) Built-in 3 Gigabit Ethernet ports (2LAN+1WAN or 3LAN or 3 WAN) (incl. 1PD) Dual radio for 802.11ac/a/b/g/n with concurrent 5GHz & 5GHz bands up to 2.6Gbps Wi-Fi bandwidth (3AC model) MIMO technology 3T3R; SMA type up to 6 external antennas VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE Load Balancing built-in 5 mechanism Support NAT and Firewall Optional EMMC Flash storage on-board** Support Modbus gateway Support Client-base roaming Supports AP/ Bridge/Client/MESH modes Support 802.11s Wireless Mesh Network Support 2 RS422/RS485 ports with 2.5KV isolation or 2/4 RS232 ports (RJ45 model only) Dual Input voltage 9~56VDC (12V model); Dual Input voltage 9~36VDC (24V model); Dual input power 16.8~137.5VDC (WV model) Wi-Fi graphic signal strength Vehicle E-marking** certificate (24V model) ITxPT compliant w/ ignition function** (24V-IGN model) Editable login page of captive portal for hot-spot application USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware EN50155*/61373*/45545 verification for railway application (except 24V-IGN model)
