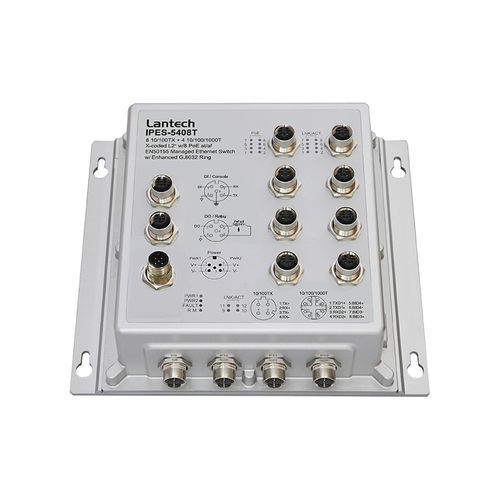

Managed ethernet switch I(P)ES-5408T

12 portsPoEIP67

8 10/100TX + 4 10/100/1000T X-coded L2+ (8 PoE at/af) EN50155 Managed Ethernet Switch w/ enhanced G.8032 Ring; 24VI/ 24TVI/ WVI model EN50155/61373/45545-2 verification Built-in IEC 61375-3-4 ECN (Ethernet Consist Network) to work with IEC61375-2-5 ETBN PoE model: IEEE802.3at/af up to 30W per port; PoE management incl. detection and scheduling PoE model: WVI dual input steps down to 54V output PoE max.80W; optional 24VI/24TVI input can boost to 54V output PoE max 80W PoE galvanic isolation (PoE models); Ethernet isolation (All models) Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP ; support MRP Ring Environmental Monitoring for temp., voltage , current and total PoE load (PoE model) Miss-wiring avoidance & node failure protection Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ Protocol based VLAN ; IPv4 Subnet based VLAN Optional bypass in case of power failure (IP67 only) N-key configurator** for upgrading, auto/editable configuration Back up and restoration without computer IP67/IP54 housing; User friendly UI, including auto topology drawing; Complete CLI
