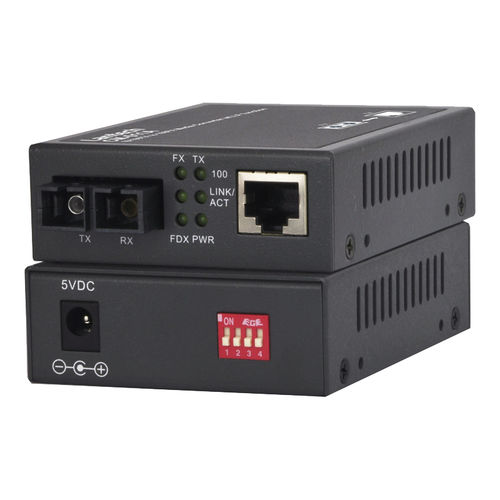

Media converter CM-011A series
Ethernetfiber opticsrack

media converter
media converter
Add to favorites
Compare this product


Characteristics

Type
media
Bus
Ethernet, fiber optics
Other characteristics
rack

Description

10/100TX to 100FX Media Converter w/ LLF function Build in Link Loss Forwarding Technology DIP switch for Auto negotiation, Speed , Half/ Full Duplex and LLF mode Slide in 16-slot converter chassis Lantech CM-011A-SC/ST/WDM fiber converter is designed to extend the transmitting distance of cooper to optical-fiber network. Lantech CM-011A supports switch mode and pure converter mode. 4 DIP switches are to adjust transmitting mode and Link Loss Forwarding (LLF) feature. The MDI/MDI-X function can automatically detect the required cable connection type and configure the connection appropriately. Lantech provides various modules to satisfy the demand of users include WDM/SC/ST multi mode and single mode (20/30/60km) interfaces. CM-011A can be slide into a 16-slots chassis which RPS option (MC-116-RPS) to be centralized and rack mountable.
