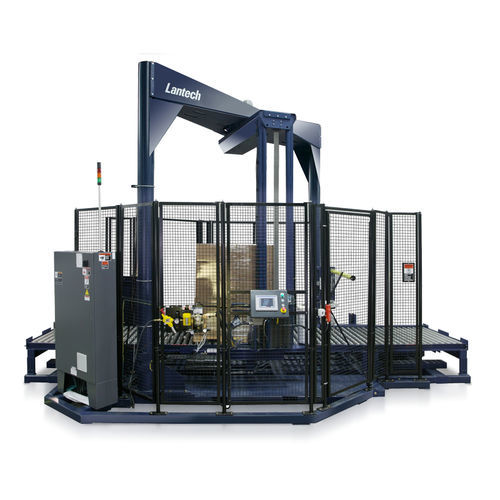

High-speed stretch wrapper SL
rotary armautomaticfor loads

high-speed stretch wrapper
high-speed stretch wrapper
Add to favorites
Compare this product


Characteristics

Type
rotary arm
Operating mode
automatic
Product applications
pallet, for loads, package
Other characteristics
stretch film, with conveyor, high-speed, five-sided
Machine weight

5,000 kg
(11,023.11 lb)

Maximum wrapping height

2,032 mm
(80 in)

Maximum pallet length

1,473 mm
(57.99 in)

Maximum pallet width

1,473 mm
(57.99 in)

Rotational speed

40 rpm
(251 rad.min-1)

Voltage

400 V, 480 V

Capacity

110 p/h

Description

Less Waste, Safer Loads AVAILABLE OPTIONS LINC® | Lantech Intelligent Network Connection® Upgrade your system with LINC® to monitor machine data and performance from anywhere. LINC® utilizes an ultra-secure connection allowing customers to react to issues before they become problems. Cold Package Cold Package option allows efficient operation of stretch wrapper in an environment where the temperature range is +31 to +10 degrees Fahrenheit. 750 MM Metered Film Delivery System For customer applications where 30” wide film is used. 25 RPM Package Wrap arm rotation is increased to 25 rpm. Includes additional fencing, visual barriers (Yellow Railroad Gates) at the infeed and exit transition, and a larger machine frame. 35 RPM Package Wrap arm rotation is increased to 35 rpm. Includes additional fencing, visual barriers (Yellow Railroad Gates) at the infeed and exit transition, and a larger machine frame. 40 RPM Package Wrap arm rotation is increased to 40 rpm. Includes 9/5/9 standard spaced conveyor layout with variable speed drive control and conveyor speeds of 60-90 FPM (high speed staging). Includes additional fencing and safety light guards. Top Sheet Dispenser Two to four mil poly film, 80" wide is automatically applied over the top of load for moisture and dust protection. In-line top sheet dispenser model applies and secures sheet of film over load as it indexes into the wrap zone with no interruption to the wrapping cycle. Mid-wrap top sheet dispenser applies and secures sheet of film over top of load during the wrapping cycle. Load is protected with five-sided coverage.
