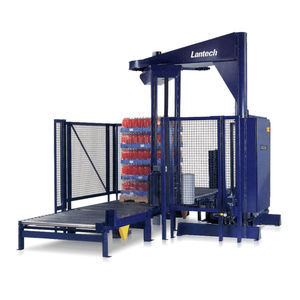

Rotary ring stretch wrapper RL
automaticpalletfor loads

rotary ring stretch wrapper
rotary ring stretch wrapper
Add to favorites
Compare this product


Characteristics

Type
rotary ring
Operating mode
automatic
Product applications
pallet, for loads
Other characteristics
stretch film, with conveyor, high-speed
Height

2,700 mm
(106 in)

Width

1,200 mm
(47 in)

Length

1,200 mm
(47 in)

Rotational speed

Min.: 1 rpm
(6 rad.min-1)

Max.: 60 rpm
(377 rad.min-1)

Voltage

400 V, 460 V

Capacity

Min.: 90 p/h

Max.: 180 p/h

Description

The Next Generation of Ring Stretch Wrap Technology Introducing the NEW RL Automatic The new RL Automatic emphasizes features that: • Maintain high-speed ring rotation without compromising cost or load quality. • Limit operator touches and costly machine downtime, which minimizes injuries and helps maintain operational efficiency. • Generate stable, safe-to-ship loads at the lowest possible cost. Speed and Load Quality Metered Film Delivery® Doubles the wrap force per revolution without crushing or twisting the load; also reduces film breaks. Load Seeking Clamp® Load-Seeking Clamp guards against film pullouts and tear-outs; also reduces film breaks and; seals the film tail to the load. Load Guardian® Intuitive control system that simplifies the wrap set-up process for operators and provides wrapping data and help screens. Pallet Grip® “Locks” the load to the pallet by rolling film into a tight cable and driving it down onto the bottom of the load.
