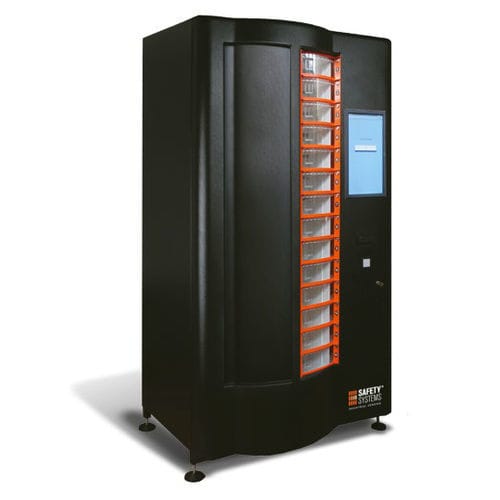

Automatic dispenser ARGO TS PRO

rotaryin-line

Automated warehouse of spare parts with rotating plates Storage capacity Up to 1008 different products in a foot print of 0.75 m3 for each ARGO TS PRO. 14 rotating trays divided in 100-mm high adjustable-width slots (6-12-18-24-36-72 slots/tray per turning carousel). Products management Easy on-site reconfiguration Simple reconfiguration of the number of slots per tray and opening of the sliding doors. Multi-product trays Management of different products on the same tray (up to 6 different products for each tray). Touch-screen display 15” monitor for guided product selection. Withdrawal On-line withdrawal Spare part stocking and withdrawal by personnel identified and authorized by company employee ID badge and real-time tracking of all operations. Guided withdrawal by Production Unit/Production line/Machine. The authorized user specifies the type of operation to be carried out (ordinary/extraordinary maintenance, fault etc.), any order number and the specific dispenser on the touch-screen display. The Argo TS PRO shows available spare parts (image, commercial code, description, management code) by category with the possibility of direct entry of the management code. The user indicates the number of parts to be withdrawn (according to predefined withdrawal limits) and the Argo TS PRO activates an indicator led at the position of the sliding door to be opened to withdraw the first part (and subsequent parts in sequence). If a spare part is not available inside the Argo TS PRO concerned, another Argo TS PRO containing the spare part required is shown on the touch-screen display.
