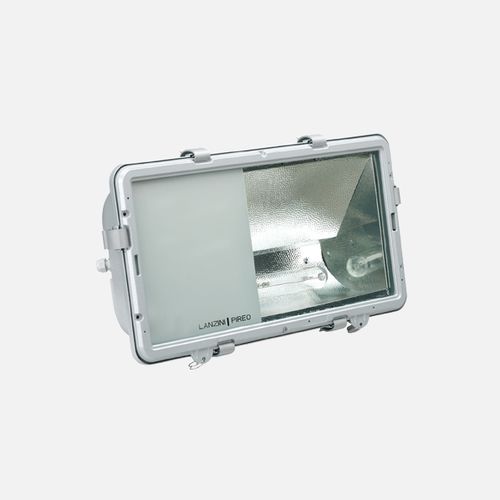

Halogen urban lamp-post Pireo Stradale

electricmetal

Small sized street fitting. Body and frame made of die-cast aluminium. Steel bracket. Painting in black, orange-peel metallized grey and white colours made by means of polyester powders. Pure-aluminium reflector, with anodized, polished specular surface for the refraction flaps of asymmetric version, and hammered surface for wide-beam and central part of asymmetric version. Inox steel outside bolts and screws. Silicone gaskets. Sodic-calcic tempered glass with 5 mm thickness, heat-proof and crash-proof. Glass frame closed by claps in silver-oxidated extruded aluminium and secured to the body by anti-loss hinges. Immediate access to the gear-plate when opening the glass frame. First brand electrical components: electro-mechanical ballast, superimposed or pulse ignitor, power factor correction capacitor with discharge resistance, tinned copper cables with silicone sheath, ceramic lampholder type E40. Cable glad PG 13,5. Fitting available in insulation classes I and II. Body Body and frame in die-cast aluminium. Reflector in pure aluminium, anodized and polished surface. Screen printed glass, sodic/calcic type, 5 mm thick, tempered, heat-proof and crash-proof. Applications Galleries
