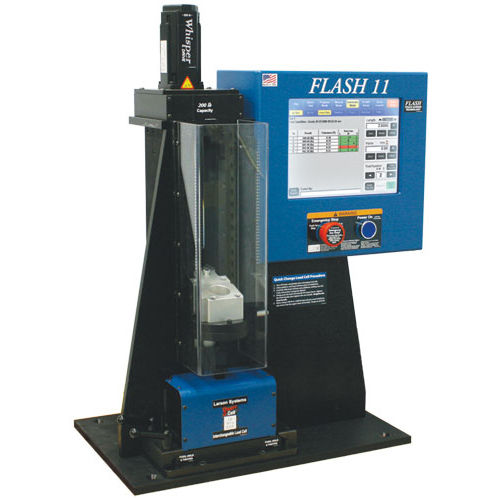

Compression testing machine FLASH 11

tensionmotorizedspring

Featuring FLASH Touch Screen Technology LSI revolutionized the spring testing industry again with the FLASH series 1,000 lb testers. Standard 48″ range (also available with 24″ range) Smart interchangeable load cells (choose from 8) Easy access to emergency shutoff Features Standard Features Standard 9.5″ range Standard 9.5″ stroke Standard 3.5″ Ø platform Up to 0.0001″ length resolution (0.0005″ standard) 2 to 1,000 lb load capacities FLASH interface Adjustable travel / test speed Compression and extension testing of force and length Touch screen / Full color LCD graphics Integrated Windows 10 Digital calibration NIST traceable calibration Built in deflection compensation Multiple measurement units (mm, in, lb, kg, N) Safety Features Test abort button Easy access to emergency shutoff Interlocked full enclosure Mechanical overload stops Software length / force limits Mechanical Features 1″ Ø preloaded / pretensioned ball screws Rigid preloaded linear bearings Smart interchangeable load cells (choose from 8) Optional Quick Change load cells (choose from 8) Whisper Servo drive: 200 lb and 1,000 lb Up to 1 3/8″ thru-rod Many testing accessories
