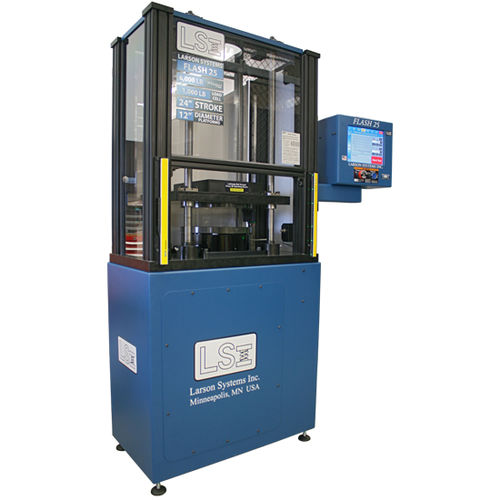

Compression testing machine FLASH 25

tensionmotorizedfor springs

Featuring FLASH Touch Screen Technology The FLASH 25 has been redesigned from the ground up alongside its big brother, the FLASH 48. Standard 24″ stroke 240 volt three phase servo drive on 15,000 lb system Easy access to emergency shutoff Features Standard Features Standard 24″ range Standard 24″ stroke Standard 12″ Ø platform with TUL (Twist Under Load) Optional 12″ Ø platform without TUL Up to 0.0001″ length resolution (0.0005″ standard) 2 lbf to 15,000 lbf load capacities FLASH Touch Screen Interface Adjustable travel / test speed Compression and extension testing of force and length Integrated Windows 10 NIST traceable digital calibration Built in deflection compensation Multiple measurement units (mm, in, lb, kg, N) Safety Features Full interlocked enclosure Test abort button Easy access to emergency shutoff Mechanical overload stops Software length / force limits Optional light curtain guard for small part tests (safe, quicker changeouts for Belleville or wave springs) Mechanical Features 240 volt single phase servo drive on 6,000 lb system (NEMA 6-15 connector plug) 240 volt three phase servo drive on 15,000 lb system Rigid preloaded linear bearings Sturdy quad ball-screw design Telescoping metal ball screw covers (optional) Triple load cell platform for maximum off-center load capacity (FLASH 48 load cells only) Pneumatic thru-rod option Smart interchangeable load cells
