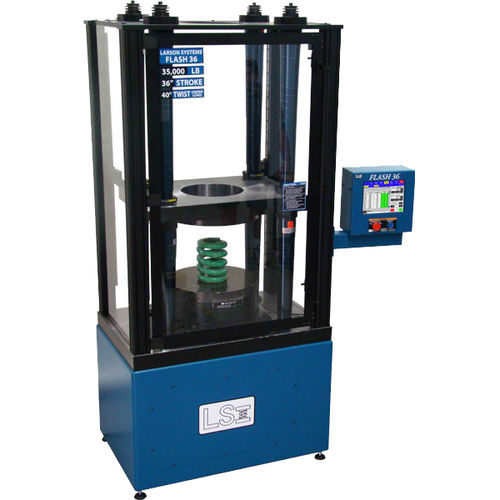

Compression testing machine FLASH 36

tensionmotorizedspring

Featuring FLASH Touch Screen Technology One of our largest spring testers, the FLASH 36’s framework is capable of testing parts with loads up to 50,000 lbf. Standard 36″ stroke 240 volt three phase servo drive Easy access to emergency shutoff Features Standard Features Standard 36″ range Standard 36″ stroke Up to 18″ Ø platform (12″ standard) Standard 0.0005″ length resolution 2,000 lbf to 50,000 lbf load capacities FLASH touch screen interface Adjustable travel / test speed Compression and extension testing of force and length Touch screen / Full color LCD graphics Integrated Windows 10 Digital calibration NIST traceable calibration Built in deflection compensation Multiple measurement units (mm, in, lb, kg, N) Safety Features Full interlocked enclosure Test abort button Easy access to emergency shutoff Mechanical overload stops Software length / force limits Mechanical Features 240 volt three phase servo drive Rigid preloaded linear bearings Sturdy quad ball-screw design Telescoping metal ball screw covers (optional) Triple load cell platform for maximum off-center load capacity Smart interchangeable load cells (choose from 6) Twist Under Load option on 35,000 lbf and 50,000 lbf systems Pneumatic thru-rod with up to 6″ Ø (optional) Spring Auto-Loader (optional) Spring Squareness Tester (optional)
