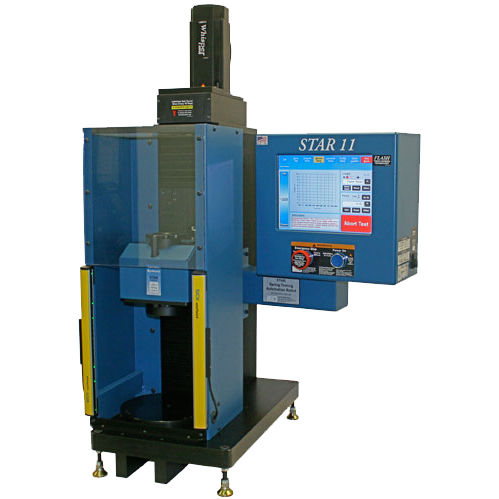

Compression testing machine STAR 11

tensionmotorizedfor springs

LSI’s STAR Series testers are motorized compression and extension force and length testing systems. Standard 15″ range (11″ + 4″ load cell offset) 120 volt Whisper servo drive on 1,000 lb systems Easy access to emergency shutoff LSI’s STAR Series testers are motorized compression and extension force and length testing systems. With their numerous load range capacities and load cell interchangeability, these testers will test a wide variety of springs or other test material. The STAR 11 can accomodate a high performance 1,000 lb servo motor / ball screw drive. Optional 2,000 or 3,000 lb drive and super precision capabilities are also available. Features Standard Features Standard 15″ range (11″ + 4″ load cell offset) Standard 11″ stroke Up to 8″ Ø platform (2″ standard) Up to 0.0001″ length resolution (0.0005″ standard) 2 to 3,000 lb load capacities FLASH interface Adjustable travel / test speed Compression and extension testing of force and length Touch screen / Full color LCD graphics Integrated Windows 10 Digital calibration NIST traceable calibration Built in deflection compensation Multiple measurement units (mm, in, lb, kg, N) Safety Features Test abort button Easy access to emergency shutoff Mechanical overload stops Software length / force limits Mechanical Features 120 volt Whisper servo drive on 1,000 lb systems 240 volt single phase servo drive on 2,000 and 3,000 lb systems (NEMA 6-15 connector plug)
