High-speed sorter MC46-33-way
Add to favorites
Compare this product
Characteristics
- Other characteristics
- high-speed, 3-way
Description

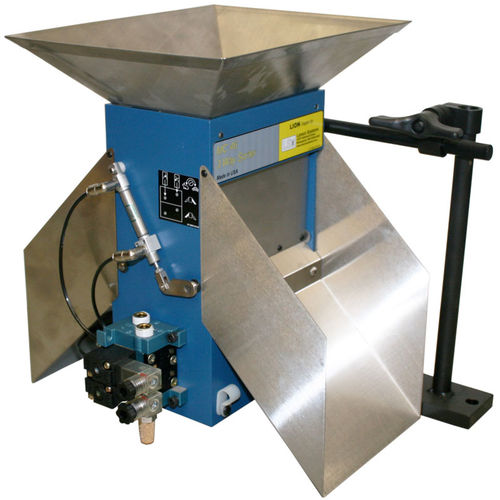

Three-Way Pneumatic Sorter
This three-way sorter sorts good, long and short. Air activated for high-speed, adjustability and reliability. Can mount to coiler face or floor stand.
Throat Size: 2.125″ x 5.625″ (80 mm x 150 mm)
Flapper Speed: Adjustable, max. 0.05 seconds / cycle
Air Pressure: 30-110 psi (2.0 – 7.5 bar)
MC46-3 – Three-Way Pneumatic Sorter
This three-way sorter sorts good, long and short. Air activated for high-speed, adjustability and reliability. Can mount to coiler face or floor stand.
Throat Size: 2.125″ x 5.625″ (80 mm x 150 mm)
Flapper Speed: Adjustable, max. 0.05 seconds / cycle
Air Pressure: 30-110 psi (2.0 – 7.5 bar)
Weight: 6 lb (3 kg)
