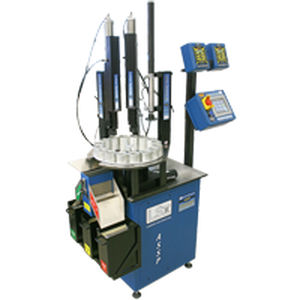

Automatic sorting machine

process

Automatic Spring Sorting Package Larson Systems’ ASSP systems feature the RoboSTAR and / or SFM (Super Force Meter) and are entirely customizable to your needs. 2 to 500 lb load capacities SDHT software package Standard 5″ stroke Automatic Spring Sorting Package with Super Force Meter The Heart of the System Larson Systems’ ASSP systems feature the RoboSTAR and / or SFM (Super Force Meter) and are entirely customizable to your needs. The ASSP allows for flexible test programming that can be tailored to your requirements including: presetting multiple times, free length measurement and multiple point testing (F@L or L@F). Rapid changeovers of part types are accomplished with no worries about tester calibration (length or force) or platform parallelism. When product requirements change, the testers can be detached and used in a stand-alone mode and are completely functional. An outstanding feature of this system is that no tools or setup fixtures are required for changeover demands. Testing Flexibility Test routines are easily programmed and saved. Routines can include: single or multiple point F@L or L@F, free length, solid height, rates or presetting tests. Connectivity Options Send data directly to a PC using LSI’s UTM software program. Use the powerful statistical functions to manipulate the data. Print out a summary only. Run the printer at the end of the shift to print the tester generated statistical summary. Environmental / Sound Enclosure An enclosure protects the sorting and testing process from air currents, breezes, and foreign material.
