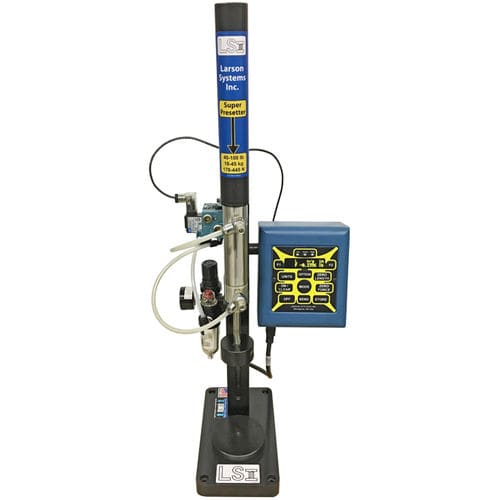

Fatigue test stand

PLC-controlledfor springspneumatic

This tester is an inexpensive hand-loaded hot or cold presetter, or fatigue cycler. Rapid hot or cold presetting 5″ stroke standard Hand loaded presetting up to 2,000 parts / hour This tester is an inexpensive hand-loaded hot or cold presetter, or fatigue cycler. It has no force measuring capability, but is pneumatically powered for minimum operator fatigue. Preset or cycle parts up to 200 lb and up to 4” Ø. Hand loaded preset rates can be up to 2,000 / hour. As a fatigue cycler, the Super Presetter can be set to cycle at rates of up to 5,000 cycles / hour. It can be programmed to shut off at a predetermined number of cycles. Power requirements: 120 / 240 VAC, 50 or 60 Hz. Air supply: 80 – 120 psi (5.5 – 8.25 bar) Features Rapid hot or cold presetting 6″ standard 5″ stroke standard 4″ Ø platform standard 3 load capacities: 40 – 100 lb (20 – 45 kg) 100 – 250 lb (45 – 110 kg) 250 – 500 lb (110 – 225 kg) SDHT software package Hand loaded presetting up to 2,000 parts / hour Fatigue cycle rates up to 5,000 cycles / hour
