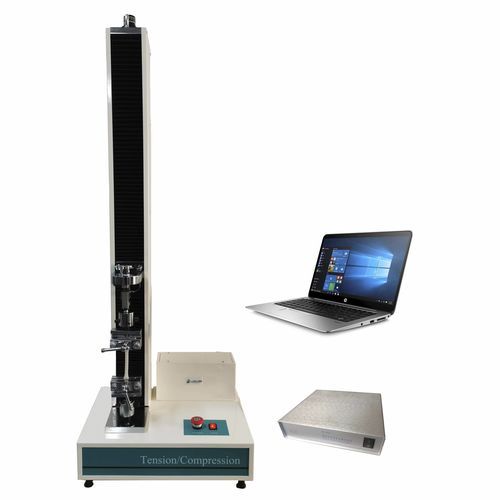

Universal testing machine UE14XX series
compressiontensilebending

universal testing machine
universal testing machine
universal testing machine
universal testing machine
universal testing machine
universal testing machine
Add to favorites
Compare this product


Characteristics

Test type
compression, universal, tensile, bending, shearing, mechanical
Operating mode
computer-controlled
Test material
for plastics, material, for rubber, for springs, for composite materials, for cables, for wire, for geotextiles, thread, for copper, for wood
Technology
electronic
Configuration
vertical
Other characteristics
precision

Description

They are suitable for tensile, compression, bending, shearing and all other common material mechanical tests for metal and non-metal material for example steel, aluminum, copper, geotextile, plastic, rubber, thread, wood, alloy, PVC, spring, electrical wire and cable, composite, profiled bar, waterproof roll and all ASTM, ISO, JIS, DIN, BS, EN relative material mechanical testing standards. Accuracy And Calibration The machine equips with high precision Load sensor, extensometer, encoder to get the test value. The accuracy can be reach to ±1% and±0.5% two degrees according to requirement. Servo Motor or Servo Hydraulic load system realized close loop control of full testing processing. The machine is calibrated according to international norms requirement as ASTM E4, ASTM E83,ISO7500-1,ISO9513 and supply a full detailed calibration certificate. Standard Accessories Wedge Tension, Compression Plate, 3-Points bending accessories; Encoder installed; Load cell installed; Servo motor and controller built in; Extensometer; DSP PCI Control card; Installation tools; PC and Printer. Main Features - High accuracy Load cell, Encoder and optional extensometer to test the force,displacement and extension. Reading resolution can be 1/300000 of full range. Computer 3 close-loop control testing mode of load, displacement and extension. - Large Extension and Digital gauge input channel for special test of deformation. - Speed control from 0.01 to 500mm/min (special 1000mm/min) by servo motor. - PCI computer control card to get the test value and control the servo motor - Multi-languages supported, Data saves and transports to Microsoft Words, Excel.
