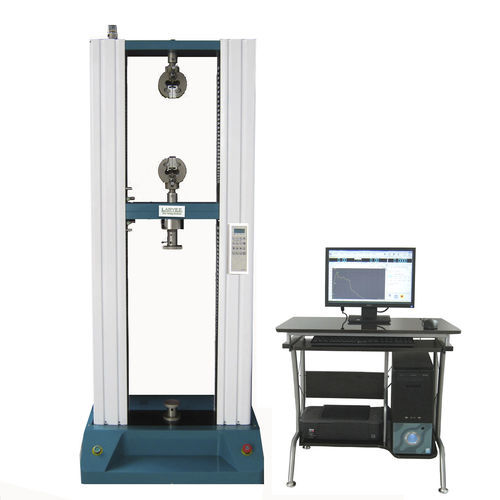

Universal testing machine UE24XX series

compressiontensilebending

They are suitable for tensile, compression, bending, shearing and all other common material mechanical tests for metal and non-metal material for example steel, aluminum, copper, geotextile, plastic, rubber, thread, wood, alloy, PVC, spring, electrical wire and cable, composite, profiled bar, waterproof roll and all ASTM, ISO, JIS, DIN, BS, EN relative material mechanical testing standards. Accuracy And Calibration The machine equips with high precision Load sensor, extensometer, encoder to get the test value. The accuracy can be reach to ±1% and±0.5% two degrees according to requirement. Servo Motor or Servo Hydraulic load system realized close loop control of full testing processing. The machine is calibrated according to international norms requirement as ASTM E4, ASTM E83，ISO7500-1，ISO9513 and supply a full detailed calibration certificate. Standard Accessories Wedge Tension, Compression Plate, 3-Points bending accessories; Encoder installed; Load cell installed; Servo motor and controller built in; Extensometer; DSP PCI Control card; Installation tools; PC and Printer.
