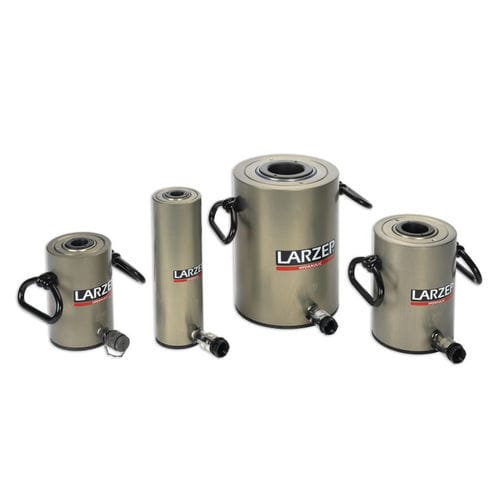

Hydraulic cylinder SAH seriessingle-actinghollow-plungerthreaded
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Configuration
- single-acting
- Other characteristics
- hollow-plunger, threaded
- Stroke
Max.: 150 mm
(5.906 in)Min.: 0 mm
(0 in)- Force
Max.: 1,407 kN
Min.: 217 kN
Description
Capacity from 22 to 100 Tn, stroke up to 150 mm.
Lightweight hollow spring return cylinders. Over 40% weight reduction when compared with steel equivalent.
Made of hard anodized high strength aluminium alloy.
Fitted with steel base plate for wear resistance.
Hollow plain saddle as standard. Optional solid or threaded saddles available.
Also available in double acting version DAH and in steel SH and DH.
Not suitable for high cycle applications.
