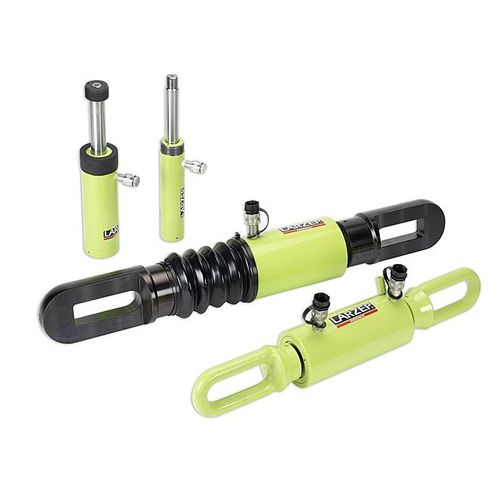

Hydraulic cylinder T-TE seriestelescopicsingle-actingfor welding applications
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- telescopic
- Configuration
- single-acting
- Applications
- for welding applications
- Other characteristics
- traction type, pull
- Stroke
Max.: 150 mm
(5.906 in)Min.: 0 mm
(0 in)- Force
Max.: 483 kN
Min.: 54 kN
Description
Capacity from 5 to 50 Tn, stroke up to 150 mm.
T and TE models are spring return. TD models are Double acting.
For pulling applications: to hook and join plates for welding, tensioning cables, etc.
Optional rubber rod cover for piston protection extends cylinder life.
Optional telescopic metallic rod cover especially suitable for welding applications.
T series pull cylinders are available as options for the CA series maintenance sets. Plunger and base threads match the CA series accessories.
