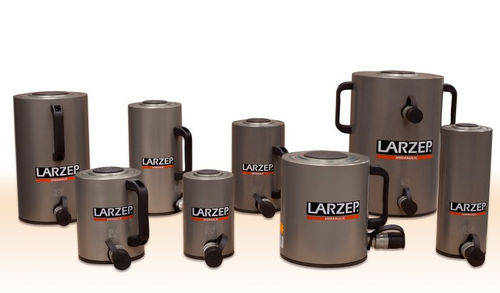

Hydraulic cylinder xDAH seriesdouble-actingaluminumhollow-plunger
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Configuration
- double-acting
- Material
- aluminum
- Other characteristics
- hollow-plunger, threaded, pull
- Stroke
Max.: 250 mm
(9.843 in)Min.: 0 mm
(0 in)- Force
Max.: 1,408 kN
Min.: 173 kN
Description
Capacity from 30 to 150 Tn, stroke up to 250 mm.
For push and pull operations: Tensioning cables and bolts, pulling sleeves and bearings.
Made of hard anodized high strength aluminium alloy.
Light weight. Over 40% weight reduction when compared with steel equivalent.
Fitted with steel base plate for wear resistance.
External safety valve to prevent accidental over-pressure.
Hollow plain saddle as standard. Optional solid or threaded saddles available.
Not suitable for high cycle applications.
