LCD screen 3.5" | SGD 35-M

3.5"240 x 160panel-mount

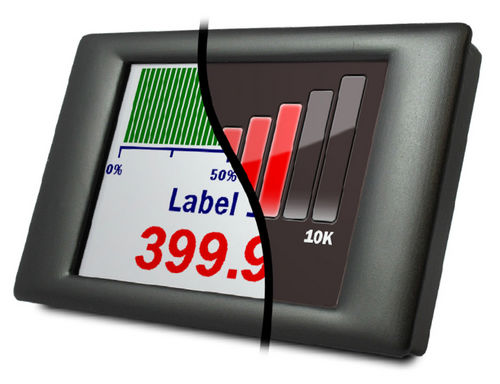

Overview The SGD 35-M is a programmable panel meter featuring dual analogue inputs, alarm outputs and 3.5” TFT colour touchscreen display. Configured using the free PanelPilot M Software for Windows, choose from an ever-increasing number of configurations including bar-graph, tank level, analogue style and trend graphs. Then customise colours, text labels, units and input scaling before uploading to a display via USB. Specification Display: 3.5” colour TFT screen Resolution: 320 x 240 pixel (QVGA) Operating Voltage: 4 to 30V d.c. Measurement range: 0 to 40V d.c. Viewing Area: 70.1 mm (2.8”) x 52.7 mm (2.1”) Application Info The SGD 35-M is suitable for a wide variety of applications. These include: •Marine •Health & Chemical Sensing •Scientific •Test & Measurement •Energy •HVAC •Industrial
